NEW! B-BeatX to expand your B-Beat

$576.00 USD

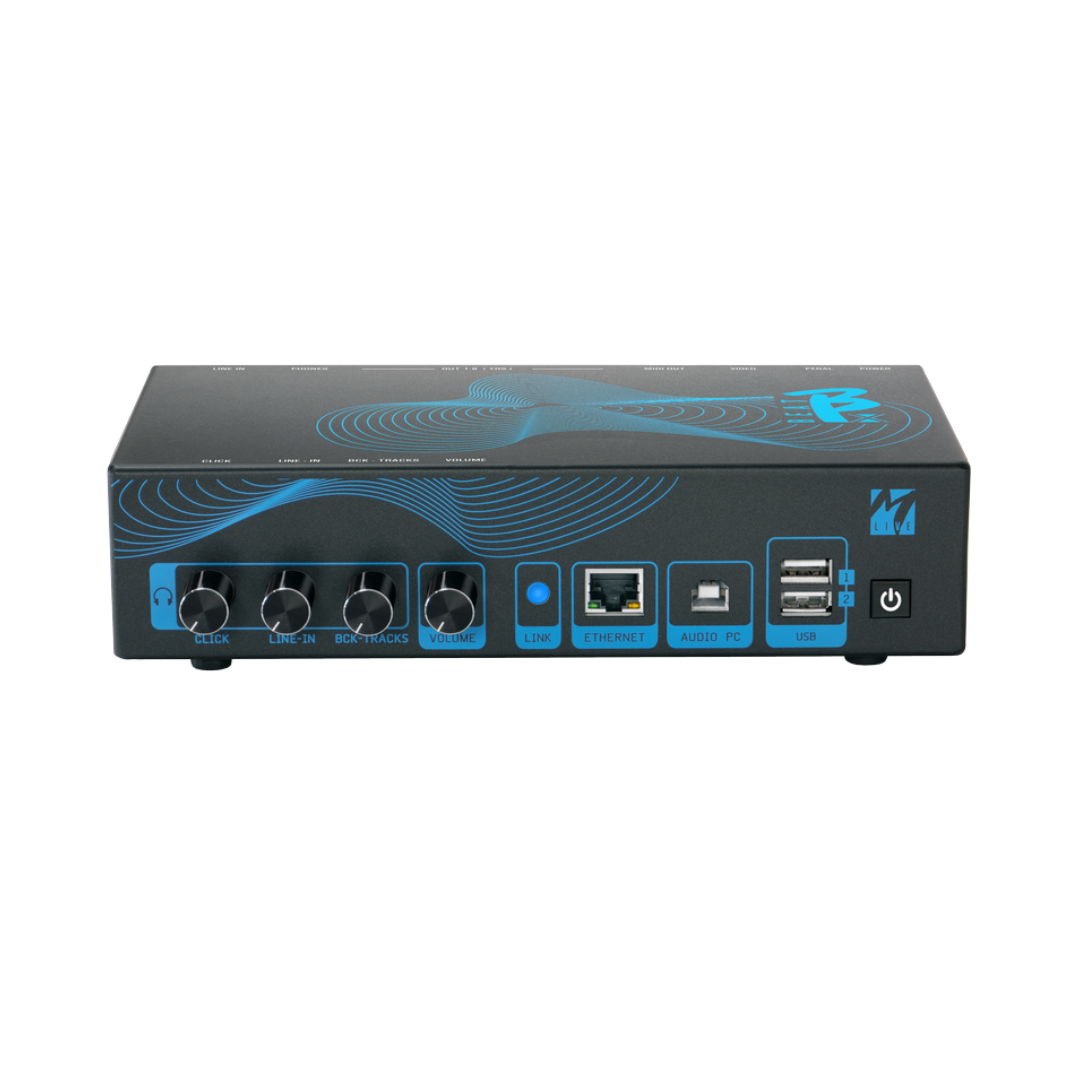

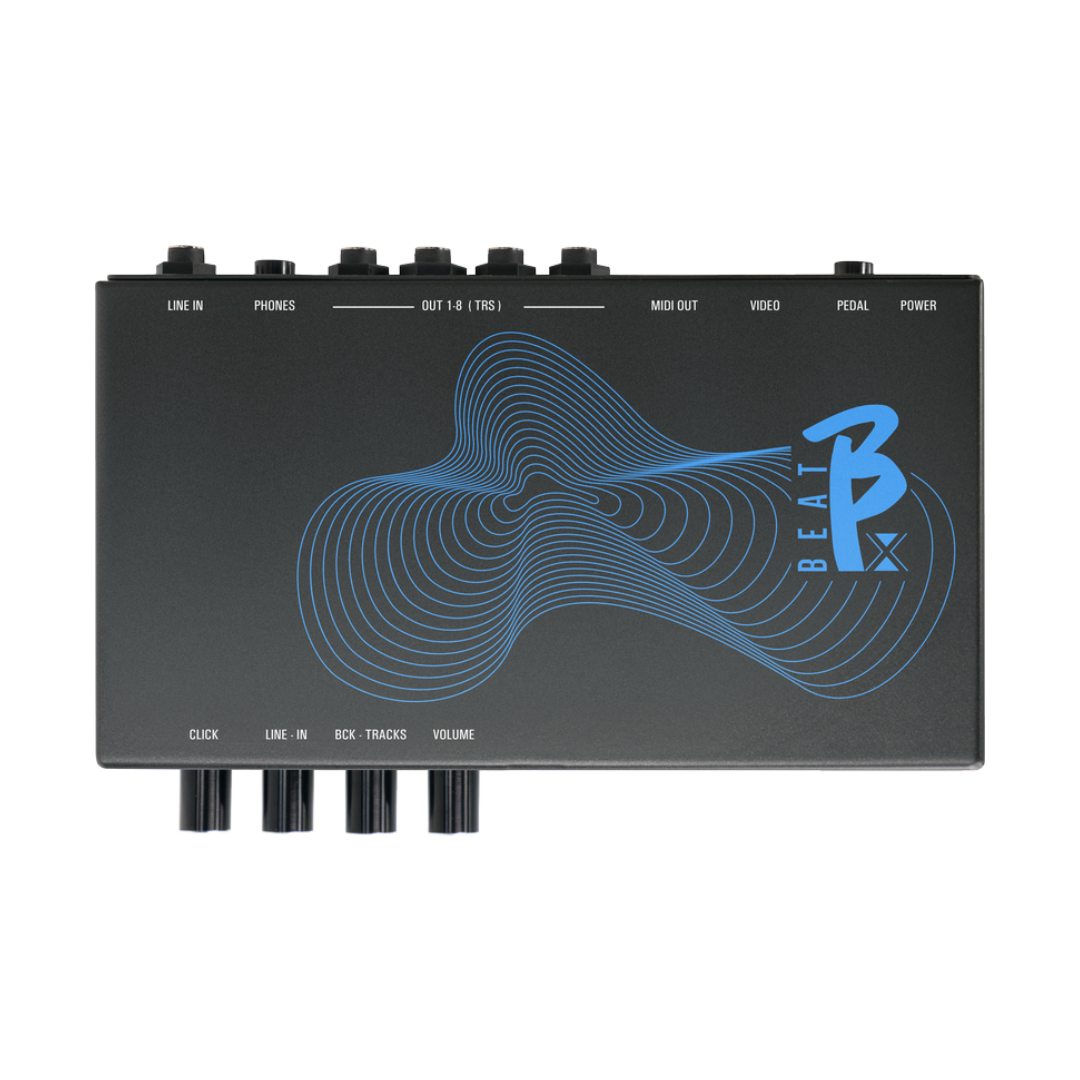

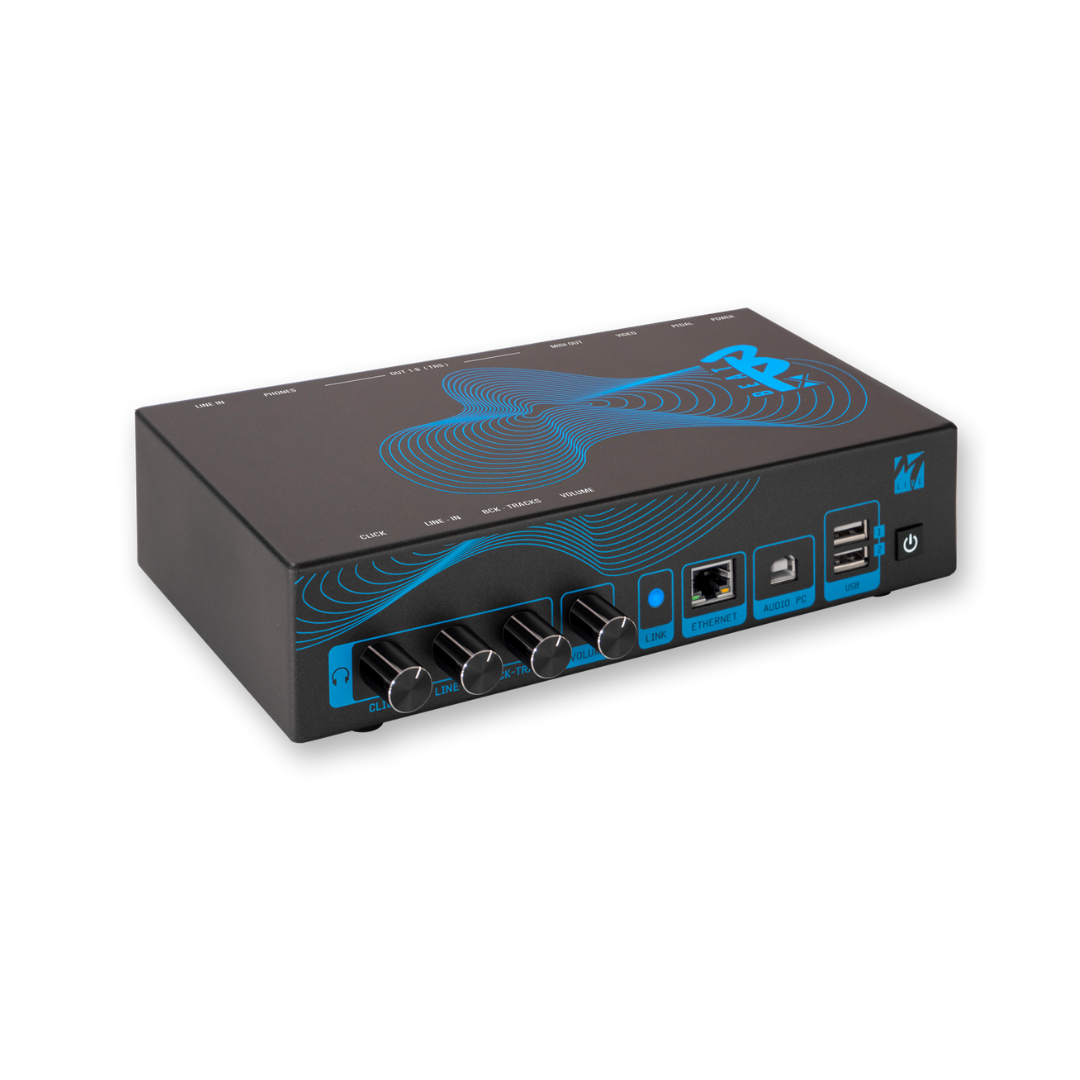

B-BeatX is the ideal expansion to take your B-Beat or B-Beat PRO16 system to the next level. Designed for musicians, technicians, and bands seeking maximum control during live shows, this module dramatically increases your capabilities with multitrack playback, video sync, sheet music display, audio routing, and MIDI integration. B-BeatX eliminates the need for computers, interfaces, and external mixers, delivering a reliable, intuitive, and powerful all-in-one solution.

Key Features

Playback of multitrack Backing Tracks (up to 16 mono or 8 stereo tracks)
Video output for screens, stage prompters, or synchronized lyrics
Sheet music upload and wireless display on smart devices
Remote control via app (iOS/Android) or LAN connection with B-Beat
Digital mixer with 16 tracks and up to 8 audio outputs
Integrated 2 In / 8 Out sound card
Organize content into Playlists or complete Shows with multiple scenes
Sync-ready with Auto-Switch systems and MIDI Clock send

Technical Specifications

Internal storage: 64 GB or 128 GB (depending on model)
Internal audio format: PCM 48 kHz / 24-bit uncompressed
Sound card: 2 analog inputs / 8 analog outputs
Compatible audio formats: WAV, MP3, OGG, AAC, SF2/3, MIDI
Compatible video formats: MP4, MOV, AVI (H.264 Full HD)
Image formats: JPG, PNG
Maximum video resolution: 1920 x 1080

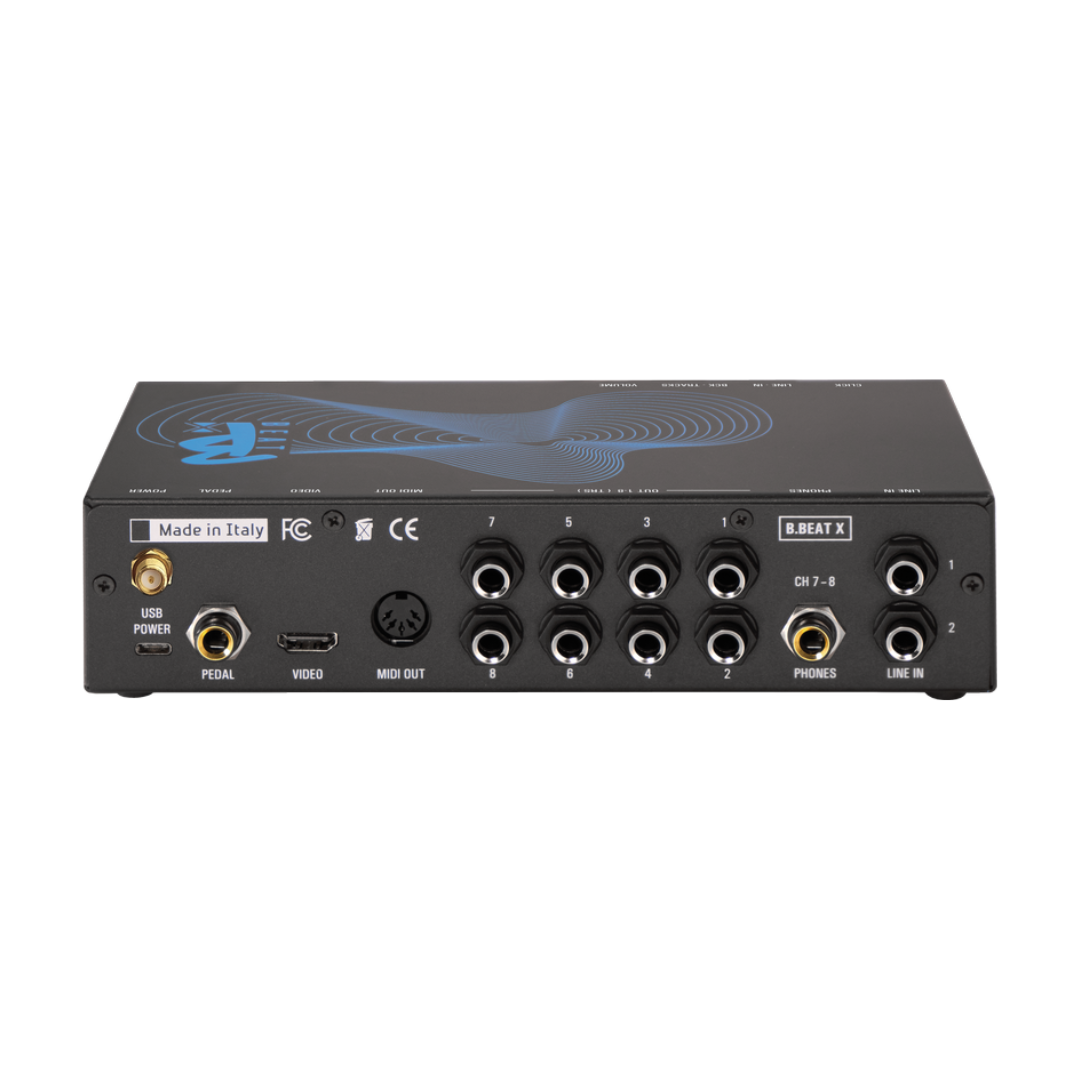

Analog inputs: 2x 3.5 mm line jacks
Analog outputs: 6x 3.5 mm jacks + stereo headphone output
Headphone output: 6.35 mm stereo jack, assignable
Connectivity: RJ45 (LAN), USB 2.0, MIDI OUT, MIDI IN via optional PC cable
Power supply: Type-C 5.1 VDC, 3A
Battery life with 10,000 mAh PowerBank: Approx. 6 hours

Why Choose This Product?

B-BeatX is more than just an expansion—it's a performance game-changer. Whether you're managing complex shows with multiple backing tracks, syncing video and lyrics in real time, or simply aiming for a cleaner, more professional stage setup, B-BeatX delivers unmatched versatility and reliability. It reduces your need for extra gear, simplifies pre-show preparation, and increases control during live performances. If you're already using a B-Beat or B-Beat PRO16, adding B-BeatX means expanding your creative possibilities without changing your workflow. It's the smart upgrade for serious live musicians and techs.

Who is this product for?

Musicians and bands already using a B-Beat or B-Beat PRO16 who need more outputs, more tracks, and higher flexibility.
Sound engineers looking for a robust, low-latency, multi-output playback system.
Live performers integrating synced video, lyrics, and scores on stage.
Artists needing a stable, professional, and portable setup for rehearsals and concerts.

B-BeatX is not a standalone player. It is designed to expand and work exclusively with:

B-Beat (standard model)
B-Beat PRO16 / PRO16 PLUS It is not compatible with earlier models such as B-Beat 128 or B-Beat M.

Benefits of this product

True system expansion: Double your audio tracks and increase your output count while maintaining a familiar workflow.
Full synchronization: Music, video, lyrics, and sheet music in real-time, without external computers.
Live show optimized: "LIVE" button ensures max processor performance and crash prevention during shows.
Integrated sound card: Use in rehearsals or live settings to simulate DAW playback with real output routing.
Less gear, more control: Replace computers, interfaces, mixers, and cables with a single, compact device.
